Standard Accessories:
Spindle Cooling System
Work Piece Cooling System
Electrical Cabinet Cooling System
Lighting System
Fully Enclosed Splashguard
Adjusting Tools
Automatic Tool Length Measurer
Optional Accessories:
Dry Mist Cutting System
Tool Holder, Chuck
Electronic Voltage Regulator
Permanent Magnetic Base
3 Axes Optical Measurement

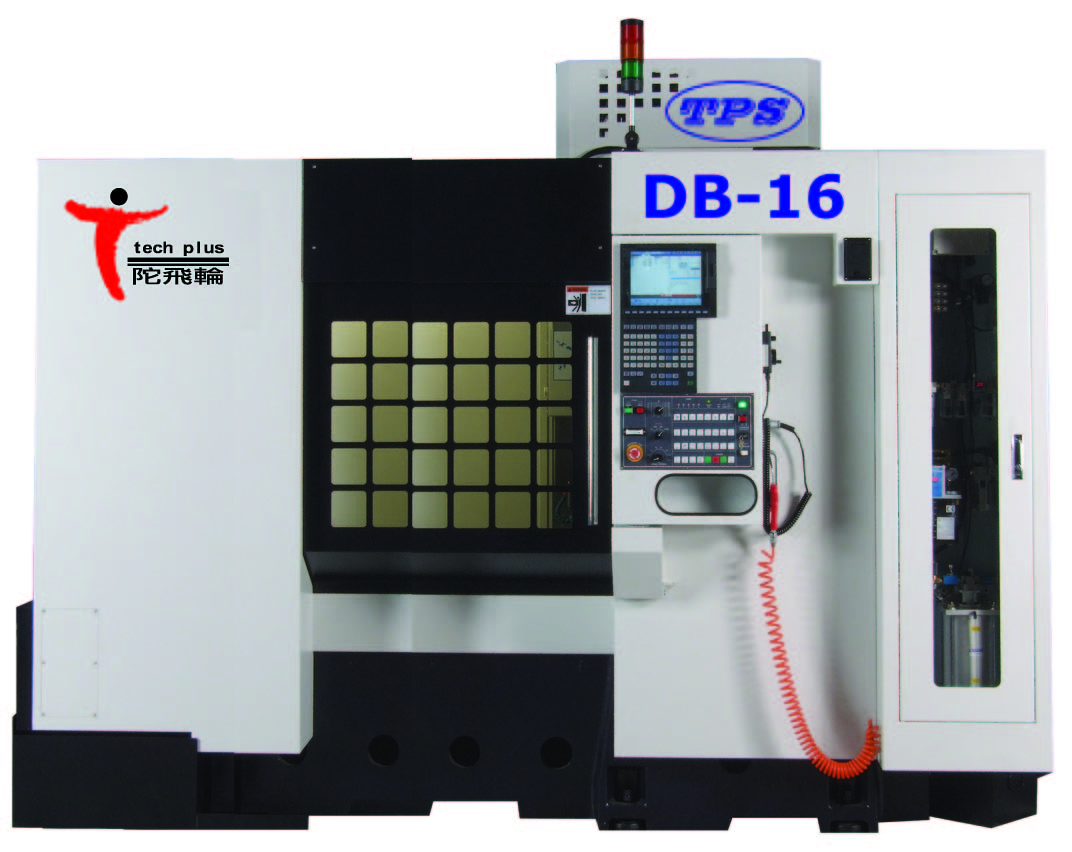

型號
Model
DB-16
DB
- 16 BT
控制器
Controller
MITSUBISHI
M70 / M720 / M730 /
FANUC 18iMB / SIEMENS 840D
顯示器
Terminal
8.4”/10.4”
full color LCD monitors
控制器軟體
System
NC
/ Win CE / Win XP
網路傳輸
Ethernet
RS232
/ RJ 45 / USB
X.Y.Z軸行程
X.Y.Z. Axis Travel
1600*800*370
mm
1600*800*500
mm
主軸至工作台距離
Spindle Nose To
Table
140~510 mm
160 ~ 660 mm
主軸功率
Spindle Motor
4.6 / 6.4 /
10 / 15KW
7.5KW
主軸轉速
Spindle Speed
2000 ~ 25000rpm
0 ~ 15000rpm
主軸孔錐度
Spindle Taper
ISO#30 / HSK-E40
/
HSK-E50 / HSK-A63
BT- 40
三軸怏速進給
Rapid Federate
30000
mm/min
自動換刀刀具數
ATC No. Of Tools
16
ATC
T型槽尺寸
T-Slots
16*7*100
mm
工作台面積
Table Dimension
1600*800
mm
工作台荷重
Max. Loading Weight
1300
kg
機台尺寸

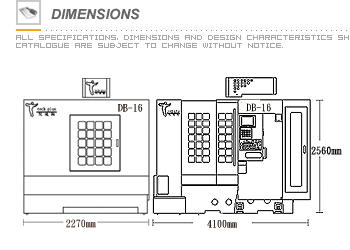

Machine Size(L*W*H)
4100*2270*2560
mm
4100*2270*2850 mm
機台重量
Weight
12000 kg
15000 kg
電力容量
Power Required
18KVA / 25KVA
25KVA
氣壓來源
Air Required
6
kgf/cm2
Ergonomically engineered for easy operations; we pay particular
attention to operator safety in every aspect of the
machine's design.
