 高速雕銑機 / 門型高速加工機

精密刀模加工機 / 3D模型加工機


Standard Accessories:
Spindle Cooling System
Work Piece Cooling System
Electrical Cabinet Cooling System
Lighting System
Fully Enclosed Splashguard
Adjusting Tools
Automatic Tool Length Measurer

Optional Accessories:
Dry Mist Cutting System
Tool Holder, Chuck
Electronic Voltage Regulator
Permanent Magnetic Base
3 Axes Optical Measurement
 型號

Model

DB-6
DB-6 BT
控制器 Controller
MITSUBISHI M65 / M720 / M730 /
FANUC 18iMB / SIEMENS 840D
顯示器 Terminal
8.4”/10.4” full color LCD monitors
控制器軟體 System
NC / Win CE / Win XP
網路傳輸 Ethernet
RS232 / RJ45 / USB
X.Y.Z軸行程 X.Y.Z. Axis Travel
600*500*370 mm
600*500*500 mm
主軸至工作台距離 Spindle Nose To Table
140 ~ 510 mm
160 ~ 660 mm
主軸功率 Spindle Motor
4.6 / 6.4 / 10 / 15KW
7.5KW
主軸轉速 Spindle Speed
2000 ~ 25000rpm
0 ~ 15000rpm
主軸孔錐度 Spindle Taper
ISO#30 / HSK-E40 /
HSK-E50 / HSK-A63
BT- 40

三軸怏速進給

Rapid Federate
20000 mm/min

自動換刀刀具數

ATC No. Of Tools
16 ATC
T型槽尺寸 T-Slots
16*4*100 mm
工作台面積 Table Dimension
680*520 mm
工作台荷重 Max. Loading Weight
650 kg

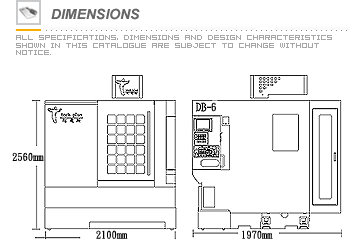

機台尺寸 Machine Size(L*W*H)
2100*1970*2560 mm
2100*1970*2850 mm
機台重量 Weight
5600 kg
6050 kg
電力容量 Power Required
18KVA / 25KVA
25KVA
氣壓來源 Air Required
6 kgf/cm2

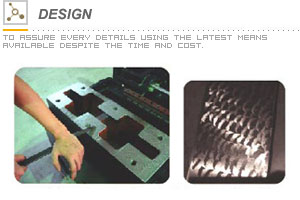

Hand scraping produces no heat and adjust thermal deformation caused by friction during the grinding process, and assures precise assembly. The pattern left behind by hand scraping testifies to our dedication and attention to the smallest detail.
